Outdoor optical fiber optic cable GYTC8A/S/Y

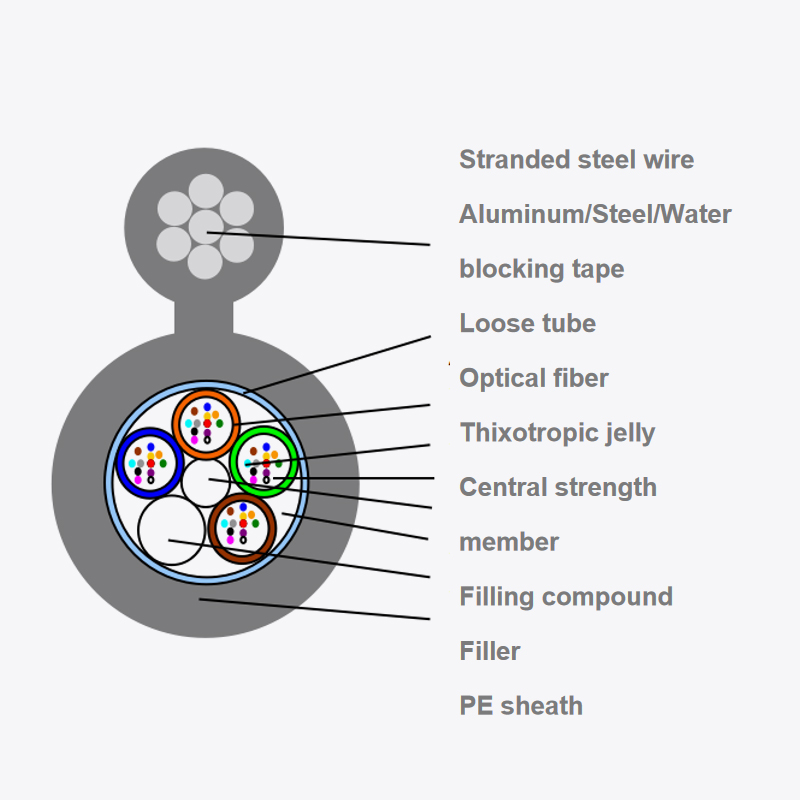

GYTC8A/S/Y The fibers, 250μm,are positioned in a loose tube made of a high modulus plastic, the tubes are filled with a water-resistant filling compound. Loose tubes filled with water proof compound to ensure compact and longitudinally water blocking ,this part of cable accompanied with the wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure.
Share:
● Adopted to Outdoor distribution.
● Suitable for aerial duct and buried method.
● Long distance and local area network communication.
Characteristics
● High tensile strength of stranded wires meets the requirement of self-supporting and reduces the installation cost.
● Good mechanical and temperature performance
● High-strength loose tube that is hydrolysis resistant
● Special tube filling compound ensures the critical protection of fiber
● The following measures are taken to ensure the cable is watertight:
Loose tube-filling compound
100% cable core filling
steel tape moisture barrier
Dimensions
|
Standard Reel Length: 2000m; Other lengths available on request. |
Dimensions
|
Fiber count |
2~30 |
32~36 |
32~60 |
62~72 |
~144 |
||
|
Element number |
5 |
6 |
5 |
6 |
~12 |
||
|
Max. coresin tube |
6 |
6 |
12 |
12 |
12 |
||
|
Cable diameter(mm) |
GYTC8A |
9.1 |
9.5 |
10.0 |
10.6 |
~14.8 |
|
|
GYTC8S |
9.4 |
9.7 |
10.1 |
10.7 |
~15.0 |
||
|
GYTC8Y |
9.2 |
9.5 |
9.9 |
10.5 |
~14.6 |
||
|
Tensile strength (N) |
(4KN~10KN) According to the demand of design |
||||||
|
Crush Resistance(N/100mm) |
Long term |
300 |
|||||
|
Short term |
1000 |
||||||
|
Bending Radius(mm) |
Dynamic |
≥20×Cable Diameter |
|||||
|
Static |
≥10×Cable Diameter |
||||||
|
Operating Temperature(℃) |
-40-- +60 |
||||||
|
application |
Aerial |
||||||
Dimensions
|
Fiber Type |
Attenuation |
OFL Bandwidth |
Effective mode bandwidth @850nm |
Ethernet link length |
Minimum bending radius |
||||
|
@850 nm |
@1300 nm |
@1310 nm |
@1550 nm |
@850 nm |
@1300 nm |
||||
|
G.657A1 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
10mm |
|
G.657A2 |
-- |
-- |
≤0.36dB/km |
≤0.22dB/km |
-- |
-- |
-- |
-- |
7.5mm |
|
OM3 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥1500MHz·km |
≥500MHz·km |
≥2000MHZ.km |
≤300m |
30mm |
|
|
OM4 |
≤3.0dB/km |
≤1.0dB/km |
-- |
≥3500MHz·km |
≥500MHz·km |
≥4700MHZ.km |
≤550m |
30mm |
|
Fiber Type
B1.3 = G652D OM3 = MaxBand*300
B6A1 = G657A1 OM4 = MaxBand*550
B6A2 = G657A2 BI-OM3 = MaxBand*300
A1 = 50/125μm BI-OM4 = MaxBand*550
A1b = 62.5/125μm
